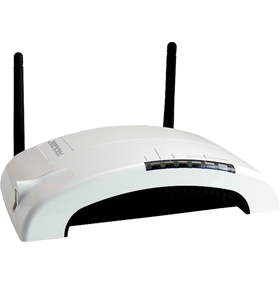

GSM & CDMA Gateway Wireless AP Router Prolink PWH2004
| PC Connectivity | Wireless (WiFi), Cables (LAN Ethernet) |
| Wifi Signal Capability | IEEE 802.11b, IEEE 802.11g Standard, IEEE 802.11n draft |
| Working Mode | WAN to AP Router, GSM/CDMA Gateway Router, NAS |
| WiFi Frequency Range | 2.400 ~ 2.4835GHz (subject to local regulations) |
| Wired LAN Ethernet Port | 4x Fast Ethernet 10/100Mbps RJ-45 Port |
| Wired WAN Port | Available, 1x RJ-45 (Static IP, Dynamic IP, PPPoE, PPPoA Type) |
| Wireless WAN Mode (CDMA) | 2000 1X / EVDO Rev.0 / EVDO Rev.A |
| Wireless WAN Mode (GSM) | GPRS(2G) / EDGE(2.75G) / UMTS(3G) / HSDPA(3.5G) / HSUPA(3.75G) / Wimax-LTE(4G) |
| Wireless Security | WEP™ 64/128, WPA™, WPA2™ |
| Wireless Transmit Power | 11n: 135Mbps (14 dBm), 11g: 54Mbps (14 dBm), 11b: 11 Mbps 17 dBm |
| Antenna Type | 2x Antenna Connector Dipole (2dbi) |
| NAT / Port Forwarding | One to Many, Virtual Server, DMZ Host |
| QoS / Security | IP and Port Level of Priority |
| VPN Pass Through | PPTP, L2TP, and IP Sec Pass Through |
| Access Control | MAC filter, SPI Firewall |
| Connection Scheme | Connect-on-Demand |
| Max. Access Client | Up >50 Client |
| Operating Temperature | 5°C ~ 50℉C (41℉ ~ 122℉) |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Storage Temperature | -40°C ~ 70°C (-40℉ ~ 158℉) |
| Storage Humidity | 5% ~ 95% RH non condensation |
| Input Voltage | Full Range 100V~240V 12V/1.5A |
| Support Operating System | PC with Windows XP/VISTA/7, Linux and Mac OS X |
| Other Features | Support Media-Centric (Streaming Video, Gaming and VoIP Technology) |
| Dimension (WHD) | 180(L) × 116(W) × 41(H) mm |
| Weight | 233.4 gram |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 180 Hari (6 Bulan) |
| Others | Sudah Mendukung SMART Telecom EVDO dan AHA ESIA EVDO |
| Manufacturer website | http://www.prolink2u.com/ |
