PRODUCT OVERVIEW

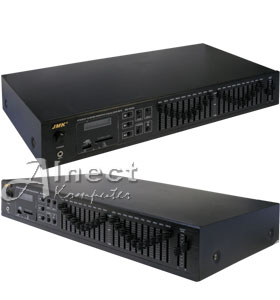

Generasi teknologi terbaru dari JMK, sebuah pemutar musik MP3 dari media flashdisk USB dan kartu memori SD Card yang sudah terintegrasi manual grafik equalizer stereo seperti layaknya sebuah tape dek. Dilengkapi juga beberapa input audio dari port 3,5mm (bagian depan) untuk dihubungkan ke iPod/PMP maupun port RCA (bagian belakang) untuk dapat dihubungkan ke pemutar VCD/DVD. Alat ini tetap membutuhkan amplifier tambahan untuk dapat dihubungkan ke speaker eksternal. Untuk power amplifier dijual terpisah dan didapatkan di toko peralatan eletronik atau amplifier buatan/modifikasi sendiri.
DETAIL SPESIFICATION
Dual 10-Band Graphics Equalizers, USB Flashdisk and SD Card Media, Dual Mode Audio Input (3.5mm and RCA), Dual Mode Audio Output (RCA to Audio Recorder and RCA to Power Amplifier), Pure Direct/Equalizer Function, Built-In LED LCD, Built-In Host MP3 Player with Play/Pause/Previous/Next Track Button, X-Bass Technology, 200mv Input Sensitivity, 47K Input Impedance, >80dB Signal-to-Noise Ratio, 20Hz-20KHz (±1.5dB) Frequncy Response, <0.01% Total Harmonic Distortion, AC 220V Power Source.
| Music Format Support |
MPEG Layer-3 (MP3) |
| Audio Line Input |
1x 3.5mm (Stereo) Audio Port, 2x RCA (L/R) Audio Port |
| Audio Line Output |
1x RCA (L/R) for Recorder, 1x RCA (L/R) for Power Amplifier |
| Memory Card Support |
MMC/SD Card (Maximum Size 4GB) |
| USB Flashdisk Support |
Available (Maximum Size 8GB) |
| LCD |
Available, Numeric LED LCD |
| Remote Control |
Not Available |
| Radio FM |
Not Available |
| Speaker Built In |
Not Available, (External Speaker with Power Amplifier - Optional) |
| Battery |
AC Outlet, 220V 50/60Hz |
| Other Features |
Blue LED 10-Band Equalizer Manual Bar, Brightness LED Control |
| Dimension (WHD) |
482.6(W) x 228.6(D) x 66.04(H) mm |
| Weight |
2.5 Kg |
| Alnect Care Warranty |
30 Hari |
| Standard Warranty |
90 Hari (3 Bulan) |
| Others |
Equalizer Points : 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz, 16KHz |
| Manufacturer website |
http://www.jmk.com.cn/ |
