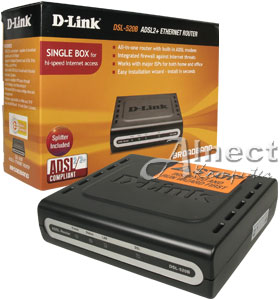

ADSL2+ Modem Router D-Link DSL-520B
| ADSL Features | ADSL Standards, ADSL2 Standards, ADSL2+ Standard |
| Security Features | NAT fi rewall, MAC Filtering, Packet Filtering IP/ICMP/TCP/UDP, SPI, Intrusion Detection, DMZ |
| Ports | 1x 10/100M Auto-Negotiation RJ45 ports(Auto MDI/MDIX), 1x RJ11 port |
| VPN Pass Through | IPSec/PPTP/L2TP pass-through |
| Cabling Type | CAT 5 UTP (Ethernet), Standard Telephone (ADSL) |
| LED Indicators | Power, Status, Ethernet Link (Activity), DSL Link (Activity) |
| Downstream Data Rates | Up to 24Mbps |
| Upstream Data Rates | Up to 2.0Mbps (With Annex M enabled) |
| ATM Features | ATM Forum UNI3.1/4.0 PVC Up to 8 PVCs, ATM Cell Format ITU-T Rec. I.361, ATM Adaptation Layer Type 5 |
| PPP Features | ATM RFC 2364, Ethernet RFC 2516, (LCP) RFC 1661, (PAP) RFC 1334, (CHAP) RFC 1994 |
| Switching/Operating Modes | RFC1483/RFC 2684 Router/Bridge, PPPoE and PPPoA connections support |
| Routing/DHCP Features | (NAT, NAPT, DNS, DDNS, DHCP Server) (Static routing, IP, TCP, UDP, ARP) (UPnP, Virtual Server, DMZ) |
| QoS | 802.1p (8 queues), Di serv TOS, Application port-based priority, User-de fined priority (TCP/UDP/ICM |
| Device Management | Web-based GUI, Web-based/TFTP firmware/configuration upgrade, etc. |
| Operating Temperature | 0¢ª ~ 40¢ª C (32¢ª ~ 104¢ª F) |
| Operating Humidity | 10% ~ 85% non-condensing |
| Storage Temperature | -20¢ª to 70¢ª C (-4¢ª to 158¢ª F) |
| Storage Humidity | 5% to 95% non-condensing |
| Support Operating System | Windows 2000/XP/Vista, Linux and Mac OS X |
| Antenna | 5VDC/1.2A switching power adapter or 9VAC/1A linear power adapter |
| Dimension (WHD) | 120 (L) x 105 (W) x 32 (H) mm |
| Weight | 177 gram (modem), 424 gram (Power Adaptor) |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 90 Hari (3 Bulan) |
| Others | ADSL Splitter, CAT5 Ethernet and RJ-11 Cable Included (1 Bundled) |
| Manufacturer website | http://www.dlink.com.my/ |
