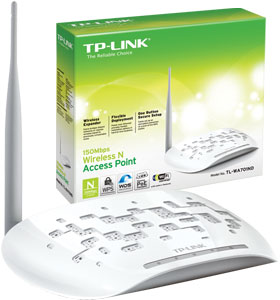

150Mbps Wi-Fi Access Point TP-Link TL-WA701ND
| PC Connectivity | 1x 10/100M Auto-Sensing RJ45 Port (Auto MDI/MDIX, Passive PoE) |
| Wifi Signal Capability | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Work Mode | AP Mode, Multi-SSID Mode, Client Mode, Repeater (WDS/Universal), Bridge Mode |
| Frequency Range | 2.4 ~ 2.4835GHz |
| Wireless Security | SSID Enable/Disable, MAC Address Filter, 64/128-bit WEP, WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) |
| Antenna Type | 5dBi Detachable Omni Directional Antenna (Reverse SMA Connector) |
| Wireless Transmit Power | 20dBm (max. EIRP) |
| Receiver Sensitivity | 130/54M(-68dBm@10% PER), 11M(-85dBm@8% PER), 6M(-88dBm@10% PER), 1M(-90dBm@8% PER) |
| Operating Temperature | 0�C ~ 40�C (32℉ ~ 104℉) |
| Operating Humidity | 10% ~ 90% RH non condensation |
| Storage Temperature | -40�C ~ 70�C (-40℉ ~ 158℉) |
| Storage Humidity | 5% ~ 95% RH non condensation |
| Input Voltage Range | Localized to Country of Sale |
| Output Voltage Range | 9 Volt AC / 0.85A Linear PSU |
| Support Operating System | Windows 2000/XP/Vista |
| Other Features | Supports Wi-Fi Multimedia (WMM) VoIP & Multimedia Streaming |
| Dimension (WHD) | (150 x 100 x 28) mm |
| Weight | 159 gram (AP + Antenna), 30 gram (PoE Module) |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 180 Hari (6 Bulan) |
| Others | Supports Passive Power over Ethernet for flexible deployment |
| Manufacturer website | http://www.tp-link.com/ |
