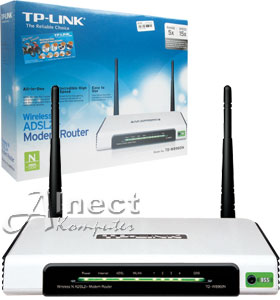

300Mbps Wireless N ADSL2+ Modem Router TP-Link TD-W8960N
| ADSL Features | ANSI T1.413i2, ITU-T (G.992.1(G.dmt), G.992.2(G.lite), G.994.1(G.hs), G.992.3(G.dmt.bis),G.992.5) |
| Security Features | NAT, IP filterling, MAC filtering, Parental Control |
| Ports | 4x 10/100M Auto-Negotiation RJ45 ports(Auto MDI/MDIX), 1x RJ11 port |
| VPN Pass Through | IPSec/PPTP/L2TP Pass-through |
| Cabling Type | CAT 5 UTP (Ethernet), Standard Telephone (ADSL) |
| LED Indicators | Power, Internet, ADSL, WLAN, LAN 1~4,QSS |
| Downstream Data Rates | Up to 24Mbps |
| Upstream Data Rates | Up to 3.5Mbps (With Annex M enabled) |
| ATM Features | UNI 3.1/4.0 (ATM 5-AAL5), ATM (RFC 1483), UBR, CBR, VBR-rt, VBR-nrt, Supports 8PVCs |
| PPP Features | PPP over ATM (RFC 2364), PPP over Ethernet (RFC 2516) |
| Switching/Operating Modes | IGMP Snooping, IGMP Multicast, IEEE 802.1d Transparent Learning Bridging |
| Routing/DHCP Features | NAT, NAPT, DNS, DDNS, DHCP Server) (Static routing, IP, TCP, UDP, ARP) (UPnP, Virtual Server, DMZ) |
| QoS | IP Type of service (ToS), 802.1p |
| Device Management | (HTTP, Console), (firmware upgradable HTTP/TFTP), CWMP(TR-069) |
| Wireless Features | 802.11b/g, 1n Up to 300Mbps(dynamic), WEP+WPA & TKIP/AES Security, Power 19dBm, 3dBi Antenna |
| Operating Temperature | 0℃ ~ 40℃ (32℉ ~ 104℉) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Temperature | -40℃ ~ 70℃ (-40℉ ~ 158℉) |
| Storage Humidity | 5% ~ 90% non-condensing |
| Support Operating System | Windows 2000/XP/Vista/7 |
| Antenna | 2x 3dBi Omni directional, Detachable, Reverse SMA |
| Other Features | Triple Play Ready (Higher Sspeed Internet + Faster IPTV + Smoother VoIP) |
| Dimension (WHD) | 200(W) x 140(H) x 28(D) mm |
| Weight | 403 gram |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 180 Hari (6 Bulan) |
| Others | ADSL Splitter Include (1 Bundled) |
| Manufacturer website | http://www.tp-link.com/ |
