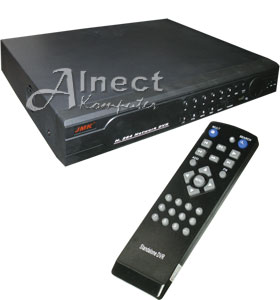

CCTV H.264 DVR HDD StandAlone 16 Channel JMK JK-7516
| Video Format | PAL |
| Operating System | None (Stand-Alone), Graphics and Windows OSD Interface |
| Camera Input Channel | 16 Channel Composite BNC |
| Video Output Channel | 1 Channel Composite BNC, 1x D-SUB (15-pin VGA), 1x HDMI Out |
| Recording Frame Rate | Max. 25 fps |
| Rec. Frame Rate (Each) | 30 fps / Number of Cameras (Max. 25 fps Total) |
| Record Mode | Manual / Schedule / Motion Detection / Alarm |
| Display Resolution | 720 x 480 |
| Record Resolution | QCIF(64~512Kbps), CIF(384~2048Kbps), HD1(64~102Kbps), D1(512~2560Kbps) |
| Video Compression Format | H.264 Video Compression |
| HDD Support | Over 500GB 3.5-inches SATA Interface PC HDD (Up to 2TB) |
| USB Interface | Available, 3x USB Port (Mouse Port, USB Back-Up Storage) |
| Remote Control | Available |
| Search Method | Available |
| Full Screen Support | Available |
| Network Support | Available (via RJ45 / LAN Port) |
| Real-Time Monitoring | Available |
| Security Level | Guest / Normal / Power User / Supervisor |
| Password Inquiry | Yes |
| Display Mode Setting | Adjustable Sequence & Channel Display Position |
| Recording Setting | Independent Setting Per Channel |
| Online / Offline Playback | Available |
| Power Source | DC 12V 4.0A (Power Adaptor Included) |
| Other Features | Cooler Fan, 1x Audio Output (RCA), 16x Audio Input (RCA) Ready |
| Dimension (WHD) | 369(W) x 65(H) x 302(D) mm |
| Weight | Approx. 2.1Kg (w/o 3.5-inches SATA HDD) |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 90 Hari (3 Bulan) |
| Others | Support Alarm I/O & RS485/232, Support PTZ Control, Mouse USB Available |
| Manufacturer website | http://www.jmk.com.cn/ |
