| ADSL Features | ADSL Standards, ADSL2 Standards, ADSL2+ Standards |
| Security Features | NAT Firewall, Access Control, MAC/IP/URL Filtering, DoS, SYN Flooding, Ping of Death IP, MAC Address |

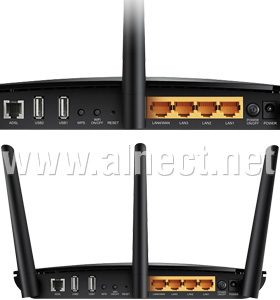

| Ports | 1 Gigabit WAN/LAN Port, 1 Gigabit RJ45 LAN Ports, 1 RJ11 Port, 2 USB 2.0 Ports |
| VPN Pass Through | PPTP, L2TP, IPSec Passthrough |
| Cabling Type | CAT 5 UTP (Ethernet), Standard Telephone (ADSL) |
| LED Indicators | Available |
| ATM Features | ATM Forum UNI3.1/4.0 |
| PPP Features | PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed) |
| Switching/Operating Modes | ADSL Modem Router, Wireless Router |
| Routing/DHCP Features | Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| QoS | ATM QoS, Bandwidth Control |
| Device Management | Web Based Configuration(HTTP), Remote management, Command Line Interface |
| Wireless Features | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Storage Humidity | 5%~90% non-condensing |
| Support Operating System | Windows 10/8/7/Vista/XP or Mac OS or Linux-based operating system |
| Antenna | 3 Detachable Dual Band External Antennas, 3 × 2dBi for 2.4GHz and 3 × 3dBi for 5GHz |
| Other Features | USB Sharing: Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Dimension (WHD) | 229 x 160 x 37 mm |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 180 Hari |
| Others | Acc. Included: External Splitter, RJ-11 Telephone Cable, RJ-45 Ethernet Cable, Power Adaptor |
| Manufacturer website | http://www.tp-link.com/ |
