PRODUCT OVERVIEW

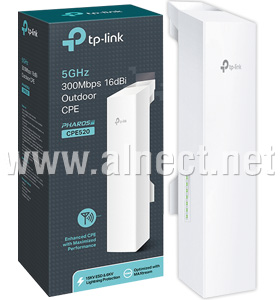

CPE Outdoor TP-LINK 5GHz 300Mbps 16dBi, CPE520 ditujukan sebagai solusi efektif untuk aplikasi jaringan wireless outdoor. Dengan aplikasi manajemen terpusat, menjadikannya ideal dan fleksibel untuk point-to-point, point-to-multipoint dan aplikasi jaringan Wi-Fi outdoor. Performa professional, dipadukan dengan design yang user-friendly, menjadikan CPE220 sebagai solusi ideal baik untuk pengguna bisnis maupun pengguna rumahan. Dengan chipset tingkat enterprise dari Qualcomm Atheros , antenna high gain dan material berkualitas tinggi, cassing yang didesign secara spesial, dan power supply PoE, CPE520 didesign untuk penggunaan outdoor dan dapat beroperasi tanpa masalah hampir disemua cuaca. TP-Link CPE520 juga dilengkapi dengan software manajemen terpusat yang membantu pengguna mengatur seluruh perangkat didalam jaringan dari sebuah PC yaitu Pharos Control. Fungsi seperti device discovery, monitoring status, upgrade firmware, dan maintenance jaringan bisa diatur menggunakan Pharos Control.
DETAIL SPESIFICATION
Built-in 16dBi 2x2 Dual-Polarized Directional MIMO Antenna, Adjustable Transmission Power from 0 to 27dBm/500mw, System-Level Optimizations for more than 20km Long Range Wireless Transmission, TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) Technology, Centralized Management System with Pharos Control, AP/Client/Bridge/Repeater/AP Router/AP Client Router (WISP) Operation Modes, Passive PoE Adapter Supports up to 60 meter (200 feet) Power Over Ethernet Deployment and Allows the Device to be Reset Remotely.
| PC Connectivity |
1x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1x 10/100Mbps Shielded Ethernet Port (LA |
| Wifi Signal Capability |
IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Work Mode |
AP/Client/Bridge/Repeater/AP Router/AP Client Router (WISP) |
| Frequency Range |
5.15 - 5.85GHz |
| Wireless Security |
WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption |
| Antenna Type |
Built-in 16dBi 2x2 Dual-polarized Directional Antenna, Beam Width: 45° (H-Plane) / 30° (E-Plane) |
| Wireless Transmit Power |
27dBm/500mw (Adjustable power by 1dBm) |
| Operating Temperature |
-40℃~70℃ (-40℉~158℉) |
| Operating Humidity |
10%~90% non-condensing |
| Storage Temperature |
-40℃~70℃ (-40℉~158℉) |
| Storage Humidity |
5%~95% non-condensing |
| Power Consumption |
14 Watts Max |
| Input Voltage Range |
100VA~240VAC @ 50Hz~60Hz, 0.4A Max @ 100VAC |
| Output Voltage Range |
24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Support Operating System |
Microsoft Windows 98SE/NT/2000/XP/Vista/10/8/7, MAC OS, NetWare, UNIX or Linux. |
| Other Features |
Protection : 15KV ESD Protection, 6KV Lightning Protection |
| Dimension (WHD) |
110 × 57 × 33.5 mm |
| Alnect Care Warranty |
30 Hari |
| Standard Warranty |
90 Hari |
| Others |
Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled) |
| Manufacturer website |
http://www.tp-link.com/ |
