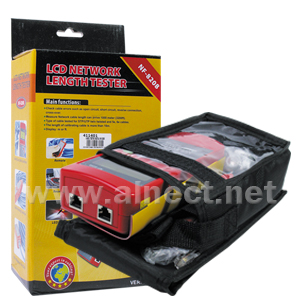

PRODUCT OVERVIEW
Merupakan alat pelacak kabel dengan berbagai fungsi dan indikator yang kegunaannya untuk melacak kabel (untuk Wire Tracker NF-8208 ini di khususkan untuk KABEL LAN, TELP atau kabel DC circuit) yang telah terpasang apakah berfungsi baik atau telah putus guna untuk perbaikan / penggantian. Alat ini sering di pakai oleh Teknisi Telkom untuk memeriksa kabel telpon yang telah terinstalasi saat ada pengaduan kerusakan jaringan telpon rumah atau kantor.
DETAIL SPESIFICATION
Tracking Cable Under Connect The Switches and Router (<=48V), Locate Cable Quickly Among Lots of Unknown Cables, Verify LAN Cable (Open CIrcuit, Short Circuit & Cross), Pin to Pin Cable Map for Individual Cable (Not by Pairs), Cable Lead is Connected with Transmitter Directly), RJ45 Port withstand Voltage up to 48V, Earphone Permits Use in Noise Environtments, Enables Cables to be Located Event When Totally Concealed, Light Wight and Easy to Handle.
| Port Test Compability |
RJ45 |
| Wire Test Method |
Open/Short/Cross/Reverse/Pair Connection |
| Power Source |
DC 9.0V Battery |
| Switch Available |
2 Position Buttons, 1 Power Switch |
| Other Feature |
Receiver: 225Hz Freq, <70mA Max Working Current, 1x Earphone Jack, 2x LED |
| Indicator |
LCD , with Backlight |
| Tone Frequency |
225Hz |
| Max. Distance Transmission |
2Km |
| Max. Distance Cable Map |
1000m |
| Tone Mode |
2 Tone Adjustable |
| Max. Signal Voltage |
15V p-p |
| Voltage Protection |
AC 60V / DC 42V |
| Low Battery Display |
LCD ( 6.5V ) |
| Battery Type |
DC 9V x 1pcs |
| Dimension (WHD) |
185 x 80 x 32 mm Transmitter, 218 x 46 x 29 mm Receiver, 107 x 30 x 24 mm Remote |
| Weight |
Approximate 750 grams |
| Alnect Care Warranty |
7 Hari |
| Standard Warranty |
30 Hari |
