PRODUCT OVERVIEW

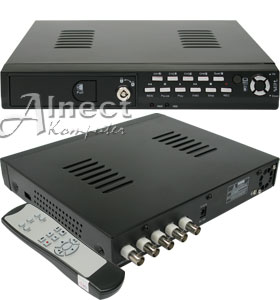

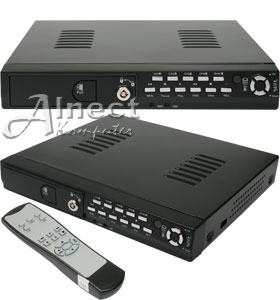

Standalone CCTV DVR ini adalah alat untuk menampilkan dan merekam kamera CCTV tanpa menggunakan perangkat komputer. DVR ini dapat merekam 4 (empat) kamera sekaligus secara bersamaan dengan menggunakan harddisk sebagai media penyimpanan hasil rekamannya. Hasil rekaman DVR ini memiliki kompresi file video rekam dan ukuran yang kecil namun berkualitas tinggi. Metode perekaman juga dapat diatur terus menerus atau berdasarkan waktu (scheduling record) atau berdasarkan sensor gerak. DVR ini belum termasuk Hard Disk (dijual terpisah) dalam paket penjualannya.
DETAIL SPESIFICATION
4 Channel BNC Camera Inputs, 1 Channel BNC Video Output, Video Format : NTSC / PAL, Motion Detection with Sensitivity and Area Settings, Time Schedule Recording/Motion Triggered Recording, USB 2.0 Back Up to Computer, With Remote Control & Removable Hard Drive Tray.
| Video Format |
PAL |
| Operating System |
None (Stand-Alone) |
| Camera Input Channel |
4 Channel Composite BNC |
| Video Output Channel |
1 Channel Composite BNC |
| Display Frame Rate |
100 frame/second (4 x 25 fps) |
| Recording Frame Rate |
Max. 25 fps (Quad Mode) |
| Rec. Frame Rate (Each) |
30 fps / Number of Cameras (Max. 25 fps Total) |
| Record Mode |
Continuous, Time Schedule, Motion Triggered |
| Display Resolution |
720 x 576 |
| Record Resolution |
320 x 136, 640 x 272 (Each : 640 x 224) |
| Video Compression Format |
Motion-JPEG (12~20KB/frame), Low 12KB/ Normal 15KB / High 20KB |
| HDD Support |
Over 500GB SATA Interface |
| Estimated Record Length |
120GB HDD @ 7fps @ Normal Quality up 322 Hours |
| USB Interface |
Not Available, PC Playback & Backup Only |
| Remote Control |
Available (16 Keys) |
| Search Method |
Time, Date, Events |
| Full Screen Support |
Yes |
| Network Support |
No |
| Real-Time Monitoring |
Yes |
| Security Level |
Guest / Normal / Power User / Supervisor |
| Password Inquiry |
Yes |
| Display Mode Setting |
Adjustable Sequence & Channel Display Position |
| Recording Setting |
Independent Setting Per Channel |
| Online / Offline Playback |
Offline Only |
| Dimension (WHD) |
250(L) x 235(W) x 38(H) mm |
| Weight |
1.2 Kg (without accesories & Hard Disk) |
| Alnect Care Warranty |
30 Hari |
| Standard Warranty |
90 Hari (3 Bulan) |
| Others |
HDD Rack with Security Keys Available |
