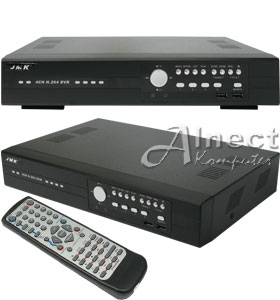

CCTV DVR HDD StandAlone 4 Channel JMK JK-H4
| Video Format | PAL |
| Operating System | None (Stand-Alone) |
| Camera Input Channel | 4 Channel Composite BNC, 2 Channel Composite RCA |
| Video Output Channel | 1 Channel Composite BNC, 1 Channel 15-pin D-Sub VGA |
| Display Frame Rate | 100 frame/second (4 x 25 fps) |
| Recording Frame Rate | Max. 25 fps (Quad Mode) |
| Rec. Frame Rate (Each) | 30 fps / Number of Cameras (Max. 25 fps Total) |
| Record Mode | Manual / Schedule / Motion / Alarm / R.E.T.R. |
| Display Resolution | 720 x 576 |
| Record Resolution | 320 x 136, 640 x 272 (Each : 640 x 224) |
| Video Compression Format | H264 / MPEG4 / JPEG (based on the device connected) |
| HDD Support | Over 500GB SATA Interface |
| Estimated Record Length | 120GB HDD @ 7fps @ Normal Quality up 322 Hours |
| USB Interface | Not Available |
| Remote Control | Available (50 Keys) |
| Search Method | Time, Date, Events |
| Full Screen Support | Yes |
| Network Support | Yes, LAN Port Available (Motion/Alarm Notification By Email or FTP) |
| Real-Time Monitoring | Yes |
| Security Level | Guest / Normal / Power User / Supervisor |
| Password Inquiry | Yes |
| Display Mode Setting | Adjustable Sequence & Channel Display Position |
| Recording Setting | Independent Setting Per Channel |
| Online / Offline Playback | Yes |
| Power Source | Yes |
| Other Features | Single E-Map & Building E-Map (BMP or JPEG format) / Google E-Map |
| Dimension (WHD) | 225(L) x 342(W) x 70(H) mm |
| Weight | 1.5 Kg (without accesories & Hard Disk) |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 90 Hari (3 Bulan) |
| Others | 9-Pin External I/O Available |
| Manufacturer website | http://www.jmk.com.cn/ |
