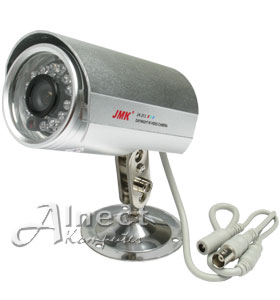

Kamera CCTV IR Outdoor Color CCD JMK JK-213
| Image Sensor | 1/3'' Color Sony CCD Video Sensor |
| Resolution | 510(H) x 492(V) PAL TV Signal System (CCIR) |
| TV System Mode | 420 TV Lines |
| Minimum Illumination | 0 Lux (IR ON) |
| Built-In IR LED | Available (with 12 unit IR LEDS) |
| IR Effective Range | 10 ~ 15 meter |
| S/N Ratio | More than 48dB (AGC Off) |
| Electronic Shutter | 1/50 ~ 1/100000 (sec) |
| Lens Feat./Image Area | f=6mm / F1.2 |
| Lens Angle/Scan Area | 15.734(H) x 59.94(V) mm Scanning Frequency |
| IRIS | Not Available |
| Gain Control | Auto |
| White Balance | Auto |
| Video Output | 1.0Vp-p BNC, 75Ω (Unbalanced) |
| Power Source | DC 12V |
| Other Features | 0.45 Gamma Characteristic, 2 : 1 Interface Scanning System |
| Dimension (WHD) | 64.5(W) x 58.5(H) x 104.5(D) mm, Cable Length 43 cm |
| Weight | 305 gram |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 90 Hari (3 Bulan) |
| Others | Membutuhkan Kabel Video, DVR (Fungsi Capture), Dockiing Dijual Terpisah |
| Manufacturer website | http://www.jmk.com.cn/ |
