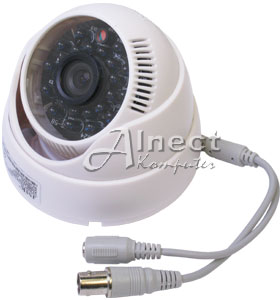

Kamera CCTV IR Dome Series JMK JK-904W
| Image Sensor | 1/3'' Sony CCD Video Sensor |
| Resolution | 510(H) x 492(V) PAL TV Signal System (CCIR) |
| TV System Mode | 540 TV Lines |
| Minimum Illumination | 0.8 Lux/ F1.2, 0Lux (IR ON) |
| Built-In IR LED | Available (with 21 unit IR LEDS) |
| IR Effective Range | Approx. 10 ~ 15 meter |
| S/N Ratio | More than 48dB |
| Electronic Shutter | 1/50 ~ 1/100000 (sec) |
| Lens Feat./Image Area | 3.6mm Lens Size, 5.18 x 4.19 mm Image Area |
| Gain Control | Auto |
| White Balance | Auto |
| Video Output | 1.0Vp-p, 75Ω, BNC Connector |
| Power Source | DC 12V , 500mA |
| Dimension (WHD) | 92.8(Ø) × 67.3(H) mm, Cable Length : Approx. 40 cm |
| Weight | 157 gram |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 90 Hari (3 Bulan) |
| Others | Kamera CCTV membutuhkan kabel video dan CCTV PCI Card / DVR Recorder |
| Manufacturer website | http://www.jmk.com.cn/ |
