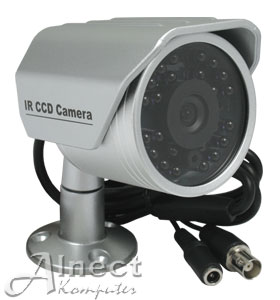

Kamera CCTV IR CCD Series KPC137ZP
| Image Sensor | 1/3'' Color CCD Image Sensor |
| Resolution | 512(H) x 492(V) |
| TV System Mode | Standard |
| Minimum Illumination | 0.4Lux / F2.0, 0Lux (15 meter IR ON) |
| Built-In IR LED | 24 units |
| IR Effective Range | Up to 15 meters |
| S/N Ratio | More than 48dB (AGC off) |
| Electronic Shutter | 1/60 (1/50) ~ 1/100,000 second |
| Lens Feat./Image Area | f3.6mm / F2.0 |
| Lens Angle/Scan Area | 92.6° |
| IRIS | AES |
| Gain Control | Auto |
| White Balance | ATW |
| Video Output | 1.0Vp-p composite, 75Ω |
| Power Source | DC 12V |
| Current Consumption | 90mA (IR OFF), 330mA (IR ON) |
| IP Rating | IP68 |
| Other Features | Wide Angle Coverage Area for Viewer and Capturing Support |
| Dimension (WHD) | 100(L) x 65(W) x 63.8(H) mm |
| Weight | 338 gram (with wall stand) |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 180 Hari |
| Others | Kamera CCTV membutuhkan kabel video dan CCTV PCI Card / DVR Recorder |
| Manufacturer website | http://www.avt.cn/ |
