PRODUCT OVERVIEW

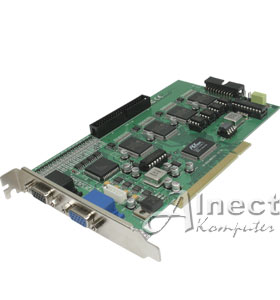

Perangkat ini digunakan untuk merekam dan mem-preview hasil tangkapan kamera CCTV yang terhubung melalui kabel video yang dipasang dan diproses melalui PC/komputer via PCI slot internal. Kartu PCI ini mampu menampung 16 kamera CCTV sekaligus dan mendukung 4 kanal audio. Dukungan "Real Time Video Preview and Capturing" yang menghasilkan rekaman video dengan kualitas yang tinggi.
DETAIL SPESIFICATION
16 channel CCTV camera video support, 4 channel audio input support, MPEG-4 Compression video format support with up 640x480 resolution, Realtime Video preview and capturing support.
| Interface |
PCI Slot v2.2 or Higher on PC Desktop/Server (32 Bit Interface) |
| Video Input (s) |
4, 8, 12, 16 CCTV Cameras |
| Audio Input (s) |
4 Channels |
| Recording Rate |
60 fps (NTSC), 50 fps (PAL) |
| Display Rate |
120 fps (NTSC), 100 fps (PAL) |
| Video Resolution |
320x240 / 640x240 / 640x480 / 640x480sw |
| Compression Format |
Wavelet, MPEG-4, GeoMPEG-4 |
| Integrated Chipset |
PLX Technology with Conexant Chipsets |
| Real Time Support |
Yes |
| Operating System Support |
PC with Windows 2000 Pro and Windows XP Pro (SP2 or Higher) |
| Dimension (WHD) |
(192 x 126.1 x 22) mm |
| Weight |

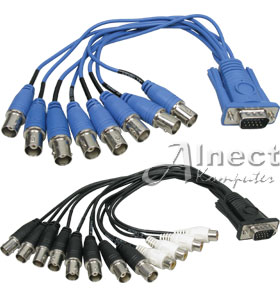

136 gram (PCI Card), 236 gram (2x VGA to Composite Cables) |
| Alnect Care Warranty |
30 Hari |
| Standard Warranty |
180 Hari |
| Manufacturer website |
http://www.socam.cc/ |
