PRODUCT OVERVIEW
FITUR :
10 Port: Port RJ45 10 10/100 Mbps dengan 8 port PoE+
Dua Kabel dalam Satu: Dengan 8 port PoE+, transfer data dan daya pada satu kabel tunggal
High Power PoE+: Mendukung Daya PoE hingga 30 W untuk setiap port PoE dan 65 W untuk semua port PoE*
2 Port Uplink: MS110P menyediakan 2 port uplink saat mengaktifkan mode isolasi. Satu untuk menghubungkan ke Internet dan satu lagi untuk menghubungkan ke NVR.
Jarak Jauh hingga 250 m: Meningkatkan jarak transmisi PoE hingga 250 m dengan Extend Mode*
Mode Isolasi: Satu klik untuk membagi lalu lintas ke port tertentu untuk stabilitas dan keamanan
Sesuai dengan Perangkat Bertenaga: Bekerja dengan PD yang sesuai dengan IEEE 802.3af/at
Casing Logam Tahan Lama: Memungkinkan pembuangan panas yang efisien dan umur jaringan yang panjang
Plug and Play: Mudah digunakan dan menghemat waktu dan tenaga
PoE Auto Recovery : Secara otomatis mem-boot ulang perangkat bertenaga PoE Anda yang terjatuh atau tidak responsif
DETAIL SPESIFICATION

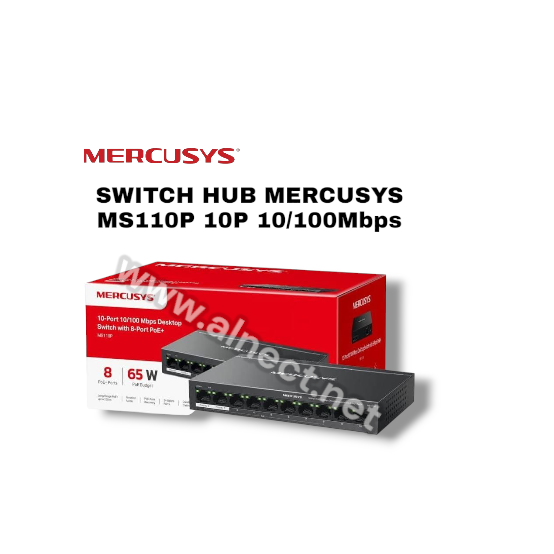

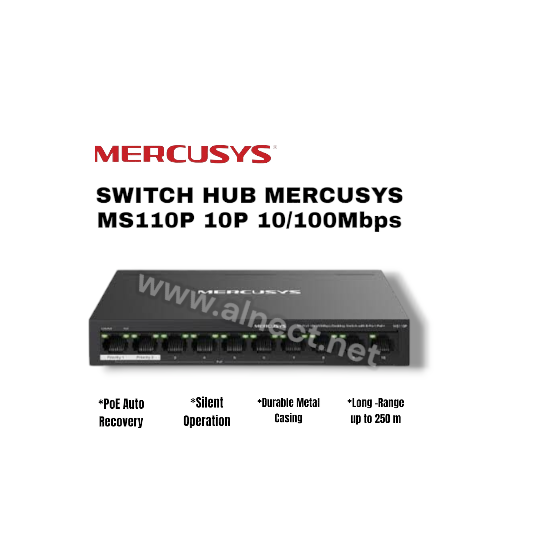

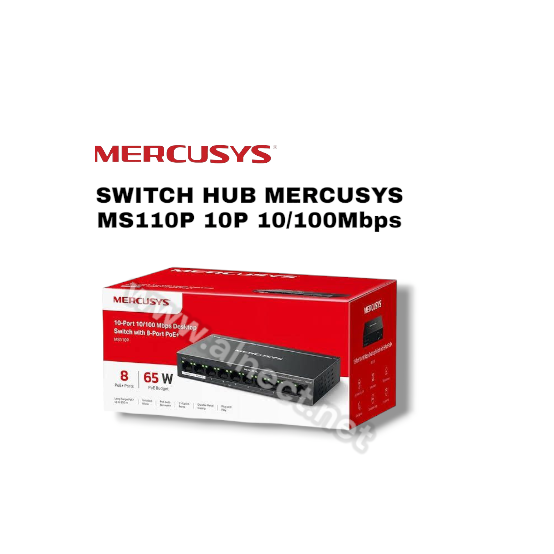

MS110P
10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Standards and Protocols |
IEEE 802.3x Flow Control |
MAC Address Table |
2K |
Forwarding Rate |
10/100 Mbps at Half Duplex 20/200 Mbps at Full Duplex |
Ports |
10 |
Operating Temperature |
0?~40? (32?~104?) |
Storage Temperature |
-40?~70? (-40?~158?) |
Operating Humidity |
10%~90% RH non-condensing |
Storage Humidity |
5%~95% RH non-condensing |
Power Source |
2.96W?220 V / 50 Hz, no PD connected? 77.52W?220 V / 50 Hz, with 65W PD connected? |
Power Consumption |
10.064 BTH/h ?no PD connected) 263.568 BTH/h?with 65W PD connected? |
Dimension (WHD) |
171*98*27 mm |
Weight |
1000 GRAM |
Alnect Care Warranty |
7 HARI |
Standard Warranty |
1 TAHUN |
Manufacturer website |
www.mercusys.com |
