PRODUCT OVERVIEW
Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE
DETAIL SPESIFICATION
MS105GP

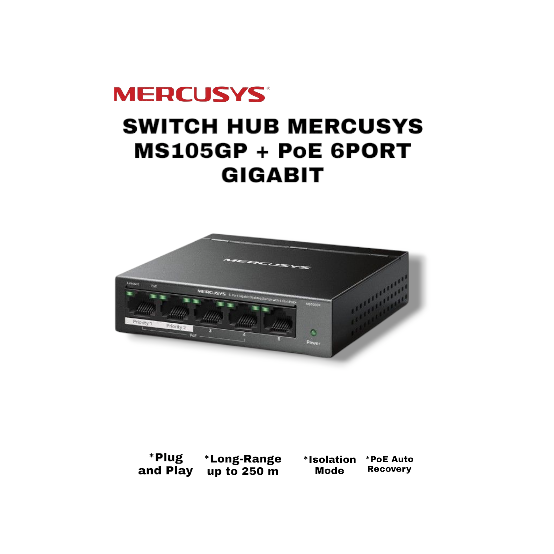

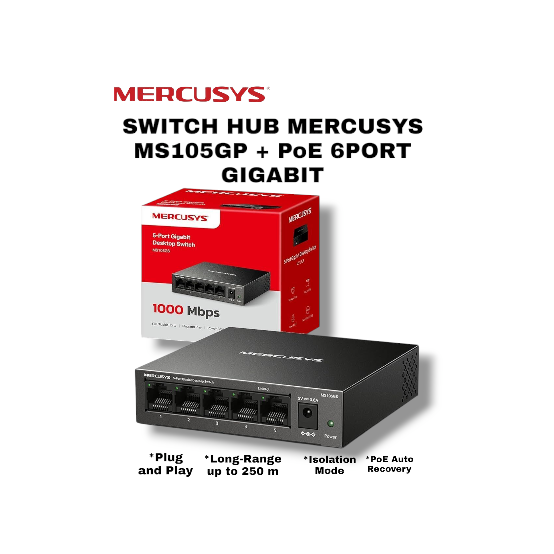

5-Port Gigabit Desktop Switch with 4-Port PoE+
Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

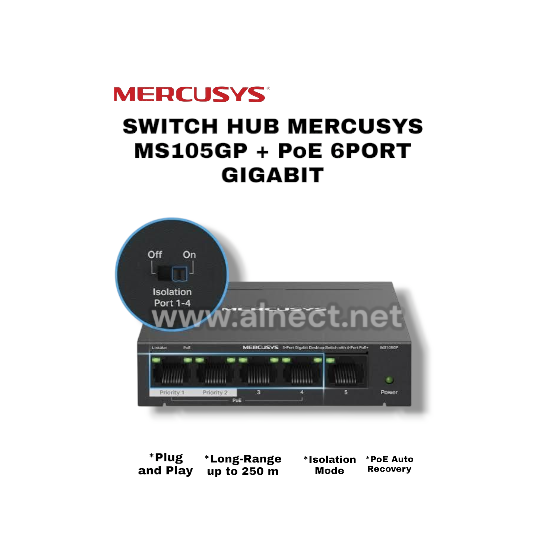

Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort
| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| MAC Address Table |
2K |
| Forwarding Rate |
10/100/1000 Mbps at Half Duplex 20/200/2000 Mbps at Full Duplex |
| Ports |
RJ45 Standard: Compliant with 802.3 af/at Powered Devices PoE Ports: Port 1- Port 4 PoE Power Bud |
| Operating Temperature |
0?~40? (32?~104?) |
| Storage Temperature |
-40?~70? (-40?~158?) |
| Operating Humidity |
10%~90% RH non-condensing |
| Storage Humidity |
5%~95% RH non-condensing |
| Power Consumption |
3.13W?220 V / 50 Hz, no PD connected? 75.15W?220 V / 50 Hz, with 65W PD connected? |
| Weight |
500 GRAM |
| Alnect Care Warranty |
7 HARI |
| Standard Warranty |
1 TAHUN |
| Manufacturer website |
www.mercusys.com |
