PRODUCT OVERVIEW

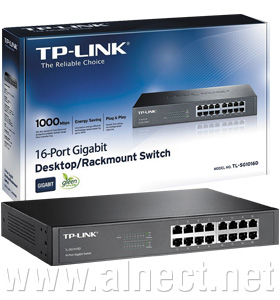

TP-Link TL-SG1016D cocok untuk memperluas kapasitas jaringan Anda dan memungkinkan transfer file besar secara instan sehingga pengguna rumahan, kantor, workgroup, atau lingkungan produksi mempunyai bandwidth intensif lebih cepat. Mentransfer gambar, CGI, CAD, atau file multimedia melalui jaringan menjadi lebih cepat. TP-Link TL-SG1016D Gigabit Switch dirancang untuk SOHO (Small Office / Home Office) atau pengguna workgroup. Semua port didukung auto MDI/MDIX, jadi Anda tidak perlu khawatir tentang jenis kabel, cukup plug and play. Selain itu, dengan teknologi hemat energi yang inovatif yang dapat menghemat sampai 40% dari konsumsi daya, menjadikannya sebagai solusi ramah lingkungan untuk jaringan bisnis Anda.
DETAIL SPESIFICATION
16x 10/100/1000Mbps Ports, Innovative Energy-Efficient Technology Saves Power Consumption, Supports MAC Address Self-learning, Supports Auto MDI/MDIX and Auto Negotiation, Supports IEEE 802.3x Flow Control for Full Duplex Mode and Backpressure for Half Duplex Mode, Store and forward Switching Scheme, 32Gbps Switching Capacity, 10KB Jumbo Frame improves Performance of Large Data Transfers, Plug & play Design.
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
Basic Function |
Wire-Speed Performance, MAC Address Auto-Learning, Auto-Aging |
IEEE802.3x Flow Control |
Available, 10/100/1000Mbps(Half-Duplex) 20/200/2000Mbps(Full-Duplex) |
Backbound Bandwidth |
32Gbps Switching Capacity |
MAC Address Table |
8K |
Forwarding Rate |
23.8Mpps (10KB Jumbo Frame) |
Transmission Method |
Store-and-Forward |
Ports |
16x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
Network Media |
10BASE-T: UTP CAT 3/4/5 Cable (max. 100m), 100BASE-TX/1000BASE-T: UTP CAT5/6/7 (max. 100m) |
LED Indicators |
PWR, 1-16 10/100/1000M, 1-16 LINK/ACT |
Safety & Emission |
FCC, CE, RoHS |
Operating Temperature |
0℃~40℃ |
Storage Temperature |
-40℃~70℃ |
Operating Humidity |
10%~90% non-condensing |
Storage Humidity |
5%~90% non-condensing |
Power Source |
100-240VAC, 50/60Hz |
Power Consumption |
Maximum: 9.26W (220V/50Hz) |
Other Features |
Fanless Design, High Quality Rackmount Case Material |
Dimension (WHD) |
294 x 180 x 44 mm |
Alnect Care Warranty |
30 Hari |
Standard Warranty |
180 Hari |
Others |
Green Technology, Innovative Energy-Efficient Technology Saves Power up to 40% |
Manufacturer website |
http://www.tp-link.com/ |
